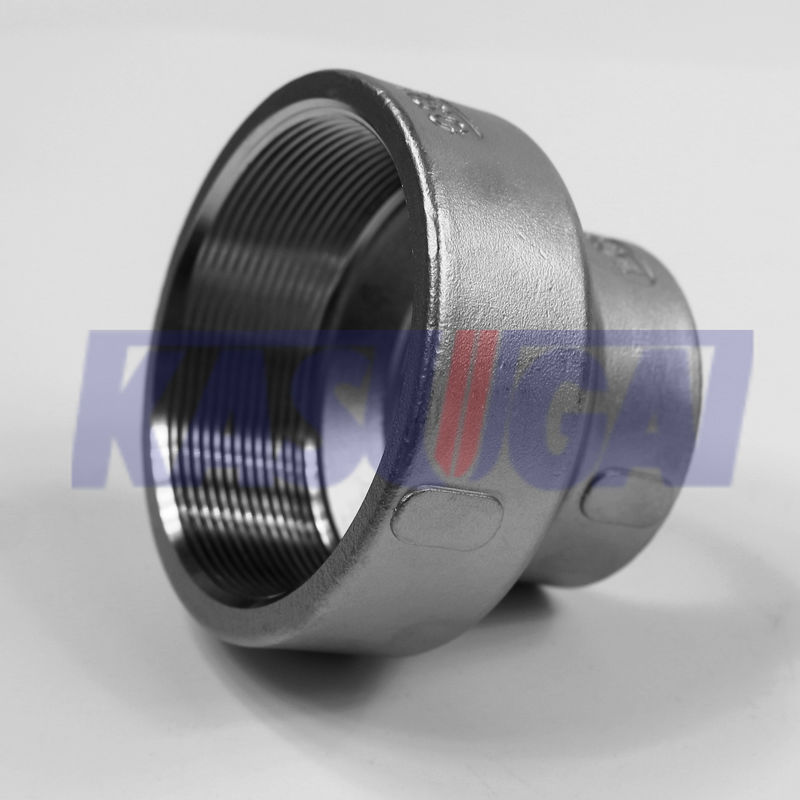

ISO 49-1994(E) CL150 304 Stainless Steel Cast Thread Reducing Sockets
Product Information
Stainless Steel Cast Thread Reducing Sockets play a crucial role in maintaining the integrity and functionality of piping systems by facilitating the connection of pipes with different diameters, ensuring smooth and efficient fluid or gas flow.
· Made from stainless steel, this reducing socket is designed for durability, corrosion resistance, and suitability for various applications, including those requiring sanitary conditions.
| Product Name | ISO 49-1994(E) CL150 304 Stainless Steel Cast Thread Reducing Sockets |
| Thread Types | ASME B1.20.1(NPT), BS 21 (NSPT), DIN2999/259 |
| Dimensions | ISO 49-1994(E), MSS SP-114, ANSI B16.3 |
| Size Range | 1/8” to 4” |
| Pressure Class | Class 150 |
| Materials | ASTM A351 (CF8, CF8M), JIS(SCS13, SCS14), AISI (304/L,316/L), ASTM A182/A276 (304/L, 316/L) |
Advantages:
· Corrosion Resistance: Stainless steel construction provides excellent resistance to corrosion and rust.
· Durable: Offers durability and longevity, ensuring a reliable connection between pipes.
· High Strength: Provides strong and secure connections in piping systems.
· Easy Installation: The threaded design allows for simple installation without the need for welding.
ISO 49-1994 Dimensions of Sockets (mm)
| Fitting Sizes (inches) | Dimensions (mm) | Laying Length (mm) | |||
| M2 | M2 R-L | M2 Reducing | a | z1 | z2 |
| ⅛ | — | 0.69 | 25 | 11 | — |
| ¼ | 0.81 | ¼ × ⅛ | 27 | 7 | 10 |
| ⅜ | ⅜ |
(⅜× ⅛) ⅜× ¼ |
30 | 10 |
13 10 |
| ½ | ½ |
½ × ¼ ½ ×⅜ |
36 | 10 |
13 13 |
| ¾ | ¾ |
¾ × ¼ ¾ × ⅜ ¾ × ½ |
39 | 9 |
14 14 11 |
| 1 | 1 |
1 × ⅜ 1 × ½ 1 × ¾ |
45 | 11 |
18 15 13 |
| 1¼ | 1¼ |
1¼ × ½ 1¼ × ¾ 1¼ × 1 |
50 | 12 |
18 16 14 |
| 1½ | 1½ |
(1½ × ½) 1½ × ¾ 1½ × 1 1½ × 1¼ |
55 | 17 |
23 21 19 17 |
| 2 | 2 |
(2 × ½) (2 × ¾) 2 × 1 2 × 1½ |
65 | 17 |
28 26 24 22 22 |
| 2½ | — |
(2½ × 1¼) (2½ × 1½) (2½ × 2) |
74 | 20 |
28 28 23 |
| 3 | — |
(3 × 1½) (3 × 2) (3 × 2½) |
80 | 20 |
31 26 23 |
| 4 | — |
(4 × 2) (4 × 2½) (4 × 3) |
94 | 22 |
34 31 28 |
| (5) | — | — | 109 | 29 | — |
| (6) | — | — | 120 | 40 | — |
