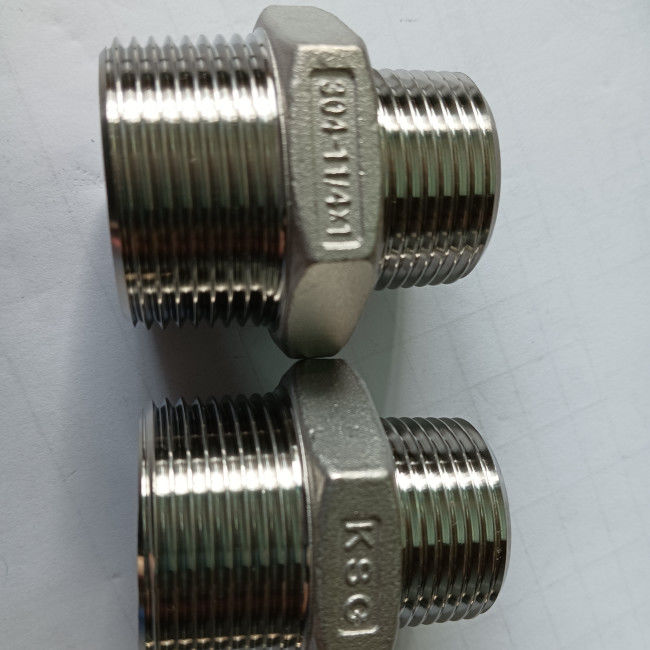

AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple
  • AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple
AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple

AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple

Place of Origin CHINA
Brand Name KASUGAI
Certification ISO-9001; PED; AD 2000
Model Number AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple
Document Product Brochure PDF
Product Details
Product Name:
AISI 304 MSS SP-114 CL1000 1¼” X 1” Stainless Steel Cast Threaded Hexagon Reducing Nipple
Size Range:
1/4" To 4”
Thread Type:
ASME B1.20.1(NPT), BS 21 (NSPT), DIN2999/259
Pressure Class:
Class 1000 NPT
Standards:
AISI 304/L
Dimensions:
MSS SP-114-2018
Highlight:

Cast Threaded Hexagon Reducing Nipple

,

CL1000 Hexagon Reducing Nipple

Payment & Shipping Terms
Minimum Order Quantity
TO BE NEGOTIATED
Price
PER BASE MATERIAL PRICE
Packaging Details
SEAWORTHY PACKING
Delivery Time
60 DAYS FOR ONE CONTAINER
Payment Terms
L / C , T / T
Supply Ability
100 TONS / MONTH
Product Description

AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple



Product Information

Product Name AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple
Thread Types ASME B1.20.1(NPT)
Dimensions MSS SP-114-2018
Size Range 1¼” x 1”
Pressure Class Class 1000 NPT
Materials AISI 304/L



Standard & Materials: AISI 304L

The SAE/ANSI 304 (AISI 304) is the most commonly available and used type of stainless steel. It is also referred to as 18/8 stainless steel, A2 stainless steel (as per the ISO 3506), or 304S15 (as per the British Standard). This is an austenitic chromium-nickel alloy which practically means that it has a very high corrosion resistance. It is also nonmagnetic and can’t be hardened through heat treatment. As AISI 304 can withstand extremely corrosive environments and can be shaped, machined and welded relatively easy, it is very popular for a wide range of applications.



AISI 304/L Chemical Composition (%)

Grade C, max Cr Mn, max Ni P, max S, max Si, max
AISI 304 0.08 18~20 2 8~10.5 0.045 0.03 1
AISI 304L 0.03 18~20 2 8~12 0.045 0.03 1



AISI 304/L Mechanical Properties

Mechanical Properties 304 304L
Hardness, Knoop 138 158
Hardness, Rockwell B 70 82
Hardness, Vickers 129 159
Tensile Strength, Ultimate 505 MPa 564 MPa
Tensile Strength, Yield 215 MPa 210 MPa
Elongation at Break 70% 58%
Modulus of Elasticity 193~200 GPa 193~200 GPa
Charpy Impact 325 J 216J



MSS SP-114 Dimensions of Class 1000 Wrought Hexagonal Reducing Nipples (mm)



AISI 304 MSS SP-114 CL1000 Stainless Steel Cast Threaded Hexagon Reducing Nipple 0



NPS Thread Length (min.) Thread Length (min.) Length of Hex. (min.) Length of Hex. (min.) Nominal Flat Width Nominal Width Across Flats(b) Bore Dia. (max.) Bore Dia. (max.) Metal Thickness (min.) Metal Thickness (min.)
  A1 A2 L1 L2 B C D1 D2 G1 G2
¼ ×⅛ 0.46 0.31 0.53 0.37 0.25 5/8 0.30 0.21 0.27 0.22
⅜ ×⅛ 0.47 0.31 0.54 0.37 0.31 11/16(a) 0.42 0.21 0.28 0.22
⅜ ×¼ 0.47 0.46 0.54 0.53 0.31 11/16(a) 0.42 0.30 0.28 0.27
½ ×⅛ 0.61 0.31 0.69 0.37 0.31 7/8 0.52 0.21 0.33 0.22
½ ×¼ 0.61 0.46 0.69 0.53 0.31 7/8 0.52 0.30 0.33 0.27
½ ×⅜ 0.61 0.47 0.69 0.54 0.31 7/8 0.52 0.42 0.33 0.28
¾ ×⅛ 0.62 0.31 0.70 0.37 0.38 1 1/16(a) 0.74 0.21 0.34 0.22
¾ ×¼ 0.62 0.46 0.70 0.53 0.38 1 1/16(a) 0.74 0.30 0.34 0.27
¾ ×⅜ 0.62 0.47 0.70 0.54 0.38 1 1/16(a) 0.74 0.42 0.34 0.28
¾ ×½ 0.62 0.61 0.70 0.69 0.38 1 1/16(a) 0.74 0.54 0.34 0.33
1 ×⅛ 0.77 0.31 0.86 0.37 0.38 1⅜ 0.96 0.21 0.39 0.22
1 ×¼ 0.77 0.46 0.86 0.53 0.38 1⅜ 0.96 0.30 0.39 0.27
1 ×⅜ 0.77 0.47 0.86 0.54 0.38 1⅜ 0.96 0.42 0.39 0.28
1 ×½ 0.77 0.61 0.86 0.69 0.38 1⅜ 0.96 0.54 0.39 0.33
1 ×¾ 0.77 0.62 0.86 0.70 0.38 1⅜ 0.96 0.74 0.39 0.34
1¼ ×¼ 0.80 0.46 0.89 0.53 0.56 1¾ 1.28 0.30 0.42 0.27
1¼ ×⅜ 0.80 0.47 0.89 0.54 0.56 1¾ 1.28 0.42 0.42 0.28
1¼ ×½ 0.80 0.61 0.89 0.69 0.56 1¾ 1.28 0.54 0.42 0.33
1¼ ×¾ 0.80 0.62 0.89 0.70 0.56 1¾ 1.28 0.74 0.42 0.34
1¼ ×1 0.80 0.77 0.89 0.86 0.56 1¾ 1.28 0.96 0.42 0.39
1½ ×¼ 0.81 0.46 0.90 0.53 0.62 2 1.50 0.30 0.44 0.27
1½ ×⅜ 0.81 0.47 0.90 0.54 0.62 2 1.50 0.42 0.44 0.28
1½ ×½ 0.81 0.61 0.90 0.69 0.62 2 1.50 0.54 0.44 0.33
1½ ×¾ 0.81 0.62 0.90 0.70 0.62 2 1.50 0.74 0.44 0.34
1½ ×1 0.81 0.77 0.90 0.86 0.62 2 1.50 0.96 0.44 0.39
1½ ×1¼ 0.81 0.80 0.90 0.89 0.62 2 1.50 1.28 0.44 0.42
2 ×¼ 0.84 0.46 0.93 0.53 0.69 2½ 1.94 0.30 0.47 0.27
2 ×⅜ 0.84 0.47 0.93 0.54 0.69 2½ 1.94 0.42 0.47 0.28
2 ×½ 0.84 0.61 0.93 0.69 0.69 2½ 1.94 0.54 0.47 0.33
2 ×¾ 0.84 0.62 0.93 0.70 0.69 2½ 1.94 0.74 0.47 0.34
2 ×1 0.84 0.77 0.93 0.86 0.69 2½ 1.94 0.96 0.47 0.39
2 ×1¼ 0.84 0.80 0.93 0.89 0.69 2½ 1.94 1.28 0.53 0.42
2 ×1½ 0.84 0.81 0.93 0.90 0.69 2½ 1.94 1.50 0.53 0.44
2½ ×½ 1.27 0.61 1.35 0.69 0.75 3 2.40 0.54 0.53 0.33
2½ ×¾ 1.27 0.62 1.35 0.70 0.75 3 2.40 0.74 0.53 0.34
2½ ×1 1.27 0.77 1.35 0.86 0.75 3 2.40 0.96 0.53 0.39
2½ ×1¼ 1.27 0.80 1.35 0.89 0.75 3 2.40 1.28 0.53 0.42
2½ ×1½ 1.27 0.81 1.35 0.90 0.75 3 2.40 1.50 0.53 0.44
2½ ×2 1.27 0.84 1.35 0.93 0.75 3 2.40 1.94 0.53 0.47
3 ×½ 1.33 0.61 1.42 0.69 0.81 3½ 2.95 0.54 0.60 0.33
3 ×¾ 1.33 0.62 1.42 0.70 0.81 3½ 2.95 0.74 0.60 0.34
3 ×1 1.33 0.77 1.42 0.86 0.81 3½ 2.95 0.96 0.60 0.39
3 ×1¼ 1.33 0.80 1.42 0.89 0.81 3½ 2.95 1.28 0.60 0.42
3 ×1½ 1.33 0.81 1.42 0.90 0.81 3½ 2.95 1.50 0.60 0.44
3 ×2 1.33 0.84 1.42 0.93 0.81 3½ 2.95 1.94 0.60 0.47
3 ×2½ 1.33 1.27 1.42 1.35 0.81 3½ 2.95 2.40 0.60 0.53
4 ×1 1.43 0.77 1.52 0.86 1.00 4⅝ 3.82 0.96 0.73 0.39
4 ×1¼ 1.43 0.80 1.52 0.89 1.00 4⅝ 3.82 1.28 0.73 0.42
4 ×1½ 1.43 0.81 1.52 0.90 1.00 4⅝ 3.82 1.50 0.73 0.44
4 ×2 1.43 0.84 1.52 0.93 1.00 4⅝ 3.82 1.94 0.73 0.47
4 ×2½ 1.43 1.27 1.52 1.35 1.00 4⅝ 3.82 2.40 0.73 0.53
4 ×3 1.43 1.33 1.52 1.42 1.00 4⅝ 3.82 2.95 0.73 0.60
