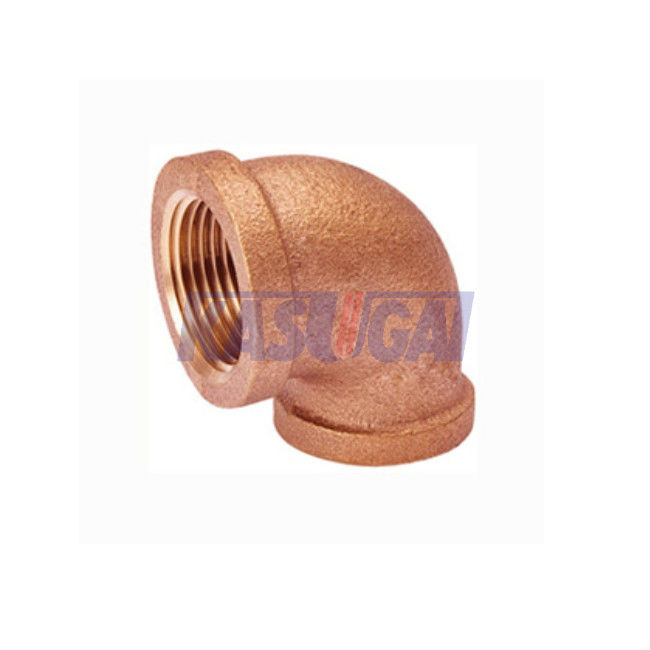

ASTM B467 C71500 ASME B16.11 Forged Copper Nickle 90 Degree Threaded (THD) Elbow
Product Information
| Product Name | A ASTM B467 C71500 ASME B16.11 Forged Copper Nickle 90 Degree Threaded (THD) Elbow |
| Size Range | 1/8” to 4” |
| Pressure Class | Class 2000 3000 6000 |
| Standards | ASTM B467 |
| Thread Type | ASME B1.20.1 (NPT) |
| Dimensions | ASME B16.11 |
ASME B16.11 forged tee is a three-way fitting used to make perpendicular connections to the pipe. The three outlets of the forged tee may be furnished with either socket welding (SW) end or threaded (THD) end. The forged tees can be further classified as straight type (all three outlets are the same pipe size) or reducing type (branch outlet is a smaller pipe size). ASME B16.11 SW tees are available in pressure rating Class 3000, 6000, and 9000; ASME B16.11 THD tees are available in pressure rating Class 2000, 3000, and 6000.
Materials & Standards:ASTM B467
ASTM B467 Chemical Composition (%)
| Grade | UNS | Mn, max | Cu, min | Pb, max | Fe, max | Ni, max | Zn, max |
| 70/30 | C71500 | 1.0 | 65 | 0.05 | 0.4-1.0 | 29-33 | 1 |
ASTM B467 Mechanical Properties
| Grade | UNS | Hardness Range, HB | Yield 0.2%, min (MPa) | Tensile, min (MPa) | Elongation, min (%) |
| 70/30 | C71500 | 80-120 | — | 310 | 27 |
Dimensions of ASME B16.11 Threaded 90° Elbow (mm)
| NPS | 2000# | 3000# | 6000# | B | L2 | ||||||
| A | H | G | A | H | G | A | H | G | |||
| 1/8" | 21 | 22 | 3.18 | 21 | 22 | 3.18 | 25 | 25 | 6.35 | 6.4 | 6.7 |
| 1/4" | 21 | 22 | 3.18 | 25 | 25 | 3.30 | 28 | 33 | 6.60 | 8.1 | 10.2 |
| 3/8" | 25 | 25 | 3.18 | 28 | 33 | 3.51 | 33 | 38 | 6.98 | 9.1 | 10.4 |
| 1/2" | 28 | 33 | 3.18 | 33 | 38 | 4.09 | 38 | 46 | 8.15 | 10.9 | 13.6 |
| 3/4" | 33 | 38 | 3.18 | 38 | 46 | 4.32 | 44 | 56 | 8.53 | 12.7 | 13.9 |
| 1" | 38 | 46 | 3.68 | 44 | 56 | 4.98 | 51 | 62 | 9.93 | 14.7 | 17.3 |
| 1-1/4" | 44 | 56 | 3.89 | 51 | 62 | 5.28 | 60 | 75 | 10.59 | 17.0 | 18.0 |
| 1-1/2" | 51 | 62 | 4.01 | 60 | 75 | 5.56 | 64 | 84 | 11.07 | 17.8 | 18.4 |
| 2" | 60 | 75 | 4.27 | 64 | 84 | 7.14 | 83 | 102 | 12.09 | 19.0 | 19.2 |
| 2-1/2" | 76 | 92 | 5.61 | 83 | 102 | 7.65 | 95 | 121 | 15.29 | 23.6 | 28.9 |
| 3" | 86 | 109 | 5.99 | 95 | 121 | 8.84 | 106 | 146 | 16.64 | 25.9 | 30.5 |
| 4" | 106 | 146 | 6.55 | 114 | 152 | 11.18 | 114 | 152 | 18.67 | 27.7 | 33.0 |
General Note: all dimensions are in millimeter
Note: A: center-to-end of threaded elbow; H: outside diameter of band; G: minimum wall thickness; B: minimum length of perfect length; L2: length of useful thread.
