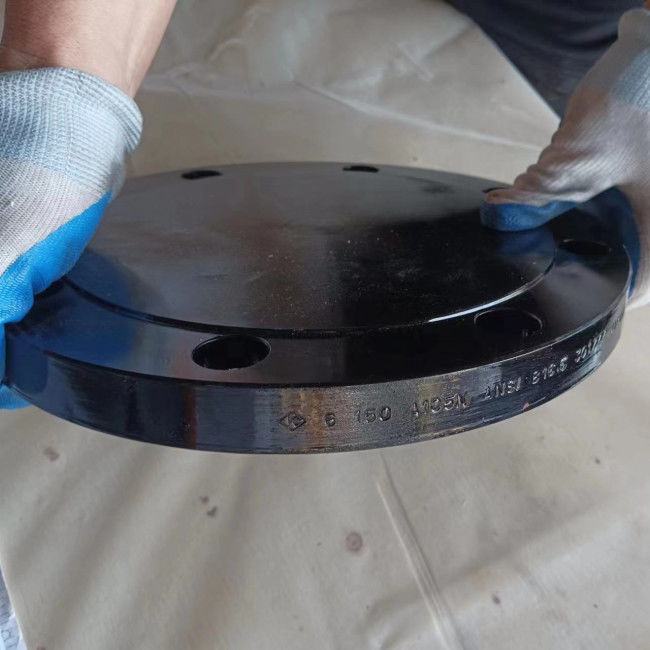

6"ASTM A105N ANSI B16.5 BL RF Class 150 Carbon Blind Raised Face Steel Flange
Product Information
Product Name | 6"ASTM A105N ANSI B16.5 BL RF Class 150 Carbon Steel Flange |
Size Range | 6” |
Pressure Class | Class 150 |
Standards | ASTM A105N |
Face Type | BL RF Blind Raised Face |
Specification | ANSI B16.5 |
Coating | Anti-rust Paint, Could and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint |
ASTM A105/A105N
ASTM A105 flanges are forged carbon steel flanges for ambient- and higher-temperature service in pressure systems. These flanges may be manufactured in accordance with a variety of standard specifications covering ASME B16.5, ASME B16.47, ASME B16.48, ASME B16.36, MSS SP 44, API 605, and API 6A, etc. Flanges made to ASTM A105 material are limited a maximum weight of 4540 kg.
ASTM A105 and A105N steel flanges are not same, they have same raw materials, same steel grades, but different heat treatment requirement. N means Normalization heat treatment, and A105 flange haves no heat treatment requirement. In summary, the ASTM A105 flange and ASTM A105N flange have a same chemical composition, but the A105N have a better mechanical property and usually used in critical situation.
ASTM A105 Chemical Composition (%)
Steel Class |
C max |
Si | Mn |
P max |
S max |
Ni max |
Cr max |
Mo max |
V max |
A105 | 0.35 | 0.10-0.35 | 0.60-1.05 | 0.035 | 0.040 | 0.40 | 0.30 | 0.12 | 0.08 |
ASTM A105 Mechanical Properties
Steel Class |
Tensile Strength min (MPa) |
Yield Strength min (MPa) |
Elongation min (%) |
Reduction of Area min (%) |
Hardness (HBW) |
A105 | 485 | 250 | 22 | 30 | 137-187 |
ANSI B16.5 Flange Dimensions - Class 150
Nominal Size | Outside Dia. | Thickness | Length thru Hub | Dia. of Hub | Raised Face Dia. | Corner Radius of Bore | Depth of Socket | Counter Bore | Thread Length | Bolt Holes | |||||
WN |
SO SW TR |
LJ | LJ | SW | TR | Bolt Circle Dia. | No | Dia. | |||||||
A | B | O | t | Y1 | Y2 | Y3 | X | R | r1 | D | B4 | Q | C | H | |
15 | 1/2 | 89 | 11.2 | 47.8 | 16 | 30.0 | 35.1 | 3 | 10 | Chamfered to major dia. of thread at 45o | 16 | 60.5 | 4 | 16 | |
20 | 3/4 | 99 | 12.7 | 52.3 | 16 | 38.0 | 42.9 | 3 | 11 | 16 | 69.8 | 4 | 16 | ||
25 | 1 | 108 | 14.3 | 55.6 | 18 | 49.5 | 50.8 | 3 | 13 | 18 | 79.2 | 4 | 16 | ||
32 | 1-1/4 | 117 | 15.8 | 57.2 | 21 | 58.5 | 63.5 | 5 | 14 | 21 | 88.9 | 4 | 16 | ||
40 | 1-1/2 | 127 | 17.6 | 62.0 | 22 | 65.0 | 73.2 | 6 | 16 | 22 | 98.6 | 4 | 16 | ||
50 | 2 | 152 | 19.1 | 63.5 | 25 | 77.5 | 91.9 | 8 | 18 | 25 | 120.6 | 4 | 19 | ||
65 | 2-/21 | 178 | 22.4 | 69.8 | 28 | 90.5 | 104.6 | 8 | 19 | 28 | 139.7 | 4 | 19 | ||
80 | 3 | 190 | 23.9 | 69.8 | 30 | 108 | 127.0 | 10 | 21 | 30 | 152.4 | 4 | 19 | ||
90 | 3-1/2 | 216 | 23.9 | 71.4 | 32 | 122 | 139.7 | 10 | 32 | 177.8 | 8 | 19 | |||
100 | 4 | 229 | 23.9 | 76.2 | 33 | 135 | 157.2 | 11 | 33 | 190.5 | 8 | 19 | |||
125 | 5 | 254 | 23.9 | 88.9 | 37 | 164 | 185.7 | 11 | 37 | 215.9 | 8 | 22 | |||
150 | 6 | 279 | 25.4 | 88.9 | 40 | 192 | 215.9 | 13 | 40 | 241.3 | 8 | 22 | |||
200 | 8 | 343 | 28.5 | 101.6 | 44 | 246 | 269.7 | 13 | 44.4 | 298.4 | 8 | 22 | |||
250 | 10 | 406 | 30.3 | 101.6 | 49 | 305 | 323.8 | 13 | 49.3 | 362.0 | 12 | 22 | |||
300 | 12 | 483 | 31.8 | 114.3 | 56 | 365 | 381.0 | 13 | 55.6 | 431.8 | 12 | 26 | |||
350 | 14 | 535 | 35.1 | 127.0 | 57 | 79 | 400 | 412.8 | 13 | 57.2 | 476.2 | 12 | 29 | ||
400 | 16 | 595 | 36.6 | 127.0 | 64 | 87 | 457 | 469.9 | 13 | 63.5 | 539.8 | 16 | 29 | ||
450 | 18 | 635 | 39.7 | 139.7 | 68 | 97 | 505 | 533.4 | 13 | 68.3 | 577.8 | 18 | 32 | ||
500 | 20 | 700 | 43.0 | 144.5 | 73 | 103 | 559 | 584.2 | 13 | 73.2 | 635.0 | 20 | 32 | ||
600 | 24 | 815 | 47.8 | 152.4 | 83 | 111 | 663 | 692.2 | 13 | 82.6 | 749.3 | 20 | 35 |
Nominal Size | Dimensions of Ring Joint Flanges | Weight (kg) | |||||||||||
Groove Number | Dia. of Raised Portion | Pitch Dia. | Depth | Width | Radius at Bottom |
WN Sch 40 |
SO | BL |
SW Sch 40 |
LJ | TR | ||
A | B | K | P | E | F | r2 | |||||||
15 | 1/2 | 0.57 | 0.41 | 0.43 | 0.42 | 0.46 | 0.42 | ||||||
20 | 3/4 | 0.73 | 0.59 | 0.64 | 0.60 | 0.65 | 0.60 | ||||||
25 | 1 | R15 | 63.5 | 47.62 | 6.35 | 8.74 | 0.8 | 1.03 | 0.79 | 0.87 | 0.81 | 0.86 | 0.82 |
32 | 1-1/4 | R17 | 73.5 | 57.16 | 6.35 | 8.74 | 0.8 | 1.33 | 1.03 | 1.16 | 1.05 | 1.10 | 1.07 |
40 | 1-1/2 | R19 | 83.0 | 65.07 | 6.35 | 8.74 | 0.8 | 1.76 | 1.36 | 1.58 | 1.38 | 1.43 | 1.41 |
50 | 2 | R22 | 102 | 82.55 | 6.35 | 8.74 | 0.8 | 2.61 | 2.10 | 2.47 | 2.14 | 2.20 | 2.18 |
65 | 2-/21 | R25 | 122 | 101.60 | 6.35 | 8.74 | 0.8 | 4.08 | 3.25 | 4.00 | 3.34 | 3.40 | 3.38 |
80 | 3 | R29 | 134 | 114.30 | 6.35 | 8.74 | 0.8 | 4.93 | 3.87 | 4.95 | 3.99 | 4.00 | 4.05 |
90 | 3-1/2 | R33 | 154 | 131.78 | 6.35 | 8.74 | 0.8 | 6.12 | 4.89 | 6.42 | 5.06 | 5.10 | |
100 | 4 | R36 | 172 | 149.22 | 6.35 | 8.74 | 0.8 | 6.96 | 5.38 | 7.09 | 5.55 | 5.63 | |
125 | 5 | R40 | 194 | 171.45 | 6.35 | 8.74 | 0.8 | 8.83 | 6.29 | 8.72 | 6.43 | 6.68 | |
150 | 6 | R43 | 219 | 193.68 | 6.35 | 8.74 | 0.8 | 10.9 | 7.77 | 11.4 | 7.89 | 8.27 | |
200 | 8 | R48 | 274 | 247.65 | 6.35 | 8.74 | 0.8 | 17.9 | 12.4 | 19.6 | 12.6 | 12.6 | |
250 | 10 | R52 | 331 | 304.80 | 6.35 | 8.74 | 0.8 | 25.0 | 17.6 | 29.1 | 17.8 | 17.6 | |
300 | 12 | R56 | 407 | 381.00 | 6.35 | 8.74 | 0.8 | 38.7 | 27.7 | 43.8 | 28.1 | 27.8 | |
350 | 14 | R59 | 426 | 396.88 | 6.35 | 8.74 | 0.8 | 51 | 35.3 | 59 | 47.6 | 35.2 | |
400 | 16 | R64 | 483 | 454.02 | 6.35 | 8.74 | 0.8 | 64 | 44.9 | 77 | 63.5 | 45.3 | |
450 | 18 | R68 | 547 | 517.52 | 6.35 | 8.74 | 0.8 | 75 | 49.3 | 94 | 72.6 | 49.7 | |
500 | 20 | R72 | 597 | 558.80 | 6.35 | 8.74 | 0.8 | 94 | 63 | 123 | 88.5 | 63.5 | |
600 | 24 | R76 | 712 | 673.10 | 6.35 | 8.74 | 0.8 | 133 | 89 | 188 | 124.7 | 90.5 |
Flange Type:Blind Flange
Blind flanges manufactured in accordance with ASME B16.5 can be provided in Class 150 through Class 2500. It is basically a circular disc that does not have a hub or bored center. Bolts holes are drilled and aligned symmetrically along the circumferential edge of the solid disc. Generally the blind flange may be furnished with raised face (RF), ring join face (RJ), or flat face (FF). The blind flange serves a function similar to that of a plug or cap and is used to blank off the end of piping, valves and pressure vessel openings. It may be fabricated from cast, forgings, specific plates, or flat bars.
Face Type: Raised Face (RF)
The Raised Face flange is the most common type used in process plant applications, and is easily to identify. It is referred to as a raised face because the gasket surfaces are raised above the bolting circle face. This face type allows the use of a wide combination of gasket designs, including flat ring sheet types and metallic composites such as spiral wound and double jacketed types.
The purpose of a RF flange is to concentrate more pressure on a smaller gasket area and thereby increase the pressure containment capability of the joint. Diameter and height are in ASME B16.5 defined, by pressure class and diameter. Pressure rating of the flange determines the height of the raised face.
