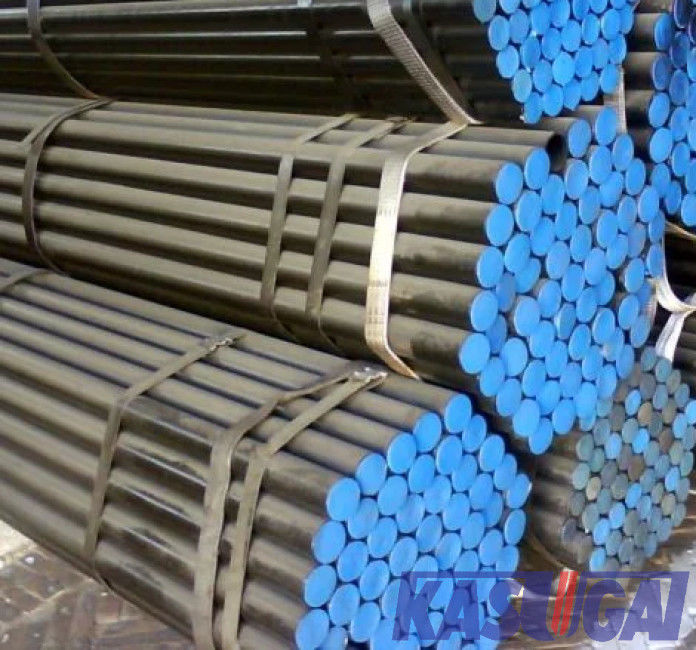

ASME B36.10M Alloy Steel Pipe Seamless Sch20S Wall Thickness Tubing

Name: ASME B36.10M Alloy Steel Pipe Seamless Sch20S Wall Thickness Tubing
Brand: Kasugai Shanghai Co., Ltd.
SKU: ASTM A335 P9 ASME B36.10M/B36.19M SMLS
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Kasugai

Certification: ISO PED AD2000

Model Number: ASTM A335 P9 ASME B36.10M/B36.19M SMLS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Seaworthy Packng

Delivery Time: 30 - 60 working days

Payment Terms: L/C, T/T

Supply Ability: 500 ton per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Sch20S Alloy Steel Pipe, ASME B36.10M Pipe Sch20S, ASME Alloy Steel Pipe


Product Name:	ASTM A335 P9 ASME B36.10M/B36.19M Alloy Steel Seamless Pipe	Size Range:	1/8" To 48"
Wall Thickness:	Sch5S, Sch10S,Sch10, Sch20S, Sch30，Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, Sch140,Sch160, XXS	Length:	SRL, DRL, Cut-length (≤6m)
End Process:	Plain Ends, Beveled Ends, Threaded Ends	Dimensions:	ASME/ANSI B36.10M ASME/ANSI 36.19M

Product Name:	ASTM A335 P9 ASME B36.10M/B36.19M Alloy Steel Seamless Pipe
Size Range:	1/8" To 48"
Wall Thickness:	Sch5S, Sch10S,Sch10, Sch20S, Sch30，Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, Sch140,Sch160, XXS
Length:	SRL, DRL, Cut-length (≤6m)
End Process:	Plain Ends, Beveled Ends, Threaded Ends
Dimensions:	ASME/ANSI B36.10M ASME/ANSI 36.19M

Description

ASME B36.10M Alloy Steel Pipe Seamless Sch20S Wall Thickness Tubing

ASTM A335 P9 ASME B36.10M/B36.19M Alloy Steel Seamless Pipe for High Pressure & Temperature Services

Product Information:

Product Name	ASTM A335 P9 ASME B36.10M/B36.19M Alloy Steel Seamless Pipe for High Pressure & Temperature Services
Standards	ASTM A335/A335M, ASME SA335
Size Range	1/8″to 48″
Wall Thickness	Sch5S, Sch10S,Sch10, Sch20S, Sch30,Sch40S, STD, Sch40, Sch60, Sch80S, XS, Sch80, Sch100, Sch120, Sch140,Sch160, XXS
Length	SRL, DRL, or as customer’s requirement
End Process	Plain Ends, Beveled Ends, Threaded Ends

Chemical Composition of ASTM A335 P1, P2, P5, P9, P11, P12, P22, P91 Alloy Steel (%)

Grade	C	Mn	P	S	Si	Cr	Mo	V	N	Others
P9	0.15 max	0.30-0.60	≤0.025	≤0.025	0.25-1.0	8.0-10.0	0.90-1.10

Mechanical Properties of ASTM A335 P1, P2, P5, P9 Alloy Steel

Grade

Tensile Strength

(MPa)

Yield Strength

(MPa)

Elongation

(%)

≥415

≥205

≥30

Dimensions of ASME/ANSI B36.10M Welded and Seamless Wrought Steel Pipe

	D	Sch5s	Sch10s	Sch10	Sch20	Sch30	Sch40s	STD	Sch40	Sch60	Sch80s	XS	Sch80	Sch100	Sch120	Sch140	Sch160	XXS
1/8	10.3	---	1.24	---	---	---	1.73	1.73	1.73	---	2.41	2.41	2.41	---	---	---	---	---
1/4	13.7	---	1.65	---	---	---	2.24	2.24	2.24	---	3.02	3.02	3.02	---	---	---	---	---
3/8	17.1	---	1.65	---	---	---	2.31	2.31	2.31	---	3.2	3.2	3.2	---	---	---	---	---
1/2	21.3	1.65	2.11	---	---	---	2.77	2.77	2.77	---	3.73	3.73	3.73	---	---	---	4.78	7.47
3/4	26.7	1.65	2.11	---	---	---	2.87	2.87	2.87	---	3.91	3.91	3.91	---	---	---	5.56	7.82
1	33.4	1.65	2.77	---	---	---	3.38	3.38	3.38	---	4.55	4.55	4.55	---	---	---	6.35	9.09
1¼	42.2	1.65	2.77	---	---	---	3.56	3.56	3.56	---	4.85	4.85	4.85	---	---	---	6.35	9.7
1½	48.3	1.65	2.77	---	---	---	3.68	3.68	3.68	---	5.08	5.08	5.08	---	---	---	7.14	10.15
2	60.3	1.65	2.77	---	---	---	3.91	3.91	3.91	---	5.54	5.54	5.54	---	---	---	8.74	11.07
2½	73	2.11	3.05	---	---	---	5.16	5.16	5.16	---	7.01	7.01	7.01	---	---	---	9.53	14.02
3	88.9	2.11	3.05	---	---	---	5.49	5.49	5.49	---	7.62	7.62	7.62	---	---	---	11.13	15.24
3½	101.6	2.11	3.05	---	---	---	5.74	5.74	5.74	---	8.08	8.08	8.08	---	---	---	---	---
4	114.3	2.11	3.05	---	---	---	6.02	6.02	6.02	---	8.56	8.56	8.56	---	11.13	---	13.49	17.12
5	141.3	2.77	3.4	---	---	---	6.55	6.55	6.55	---	9.53	9.53	9.53	---	12.7	---	15.88	19.05
6	168.3	2.77	3.4	---	---	---	7.11	7.11	7.11	---	10.97	10.97	10.97	---	14.27	---	18.26	21.95
8	219.1	2.77	3.76	---	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7	12.7	15.09	18.26	20.62	23.01	22.23
10	273.1	3.4	4.19	---	6.35	7.8	9.27	9.27	9.27	12.7	12.7	12.7	15.09	18.26	25.4	28.58	25.4	25.4
12	323.9	3.96	4.57	---	6.35	8.38	9.53	9.53	10.31	14.27	12.7	12.7	17.48	21.44	25.4	28.58	33.32	25.4
14	355.6	3.96	4.78	6.35	7.92	9.53	---	9.53	11.13	15.09	---	12.7	19.05	23.83	27.79	31.75	35.71
16	406.4	4.19	4.78	6.35	7.92	9.53	---	9.53	12.7	16.66	---	12.7	21.44	26.19	30.96	36.53	40.49
18	457.2	4.19	4.78	6.35	7.92	11.13	---	9.53	14.27	19.05	---	12.7	23.83	29.36	34.93	39.67	45.24
20	508	4.78	5.54	6.35	9.53	12.7	---	9.53	15.09	20.62	---	12.7	26.19	32.54	38.1	44.45	50.01
22	558.8	4.78	5.54	6.35	9.53	12.7	---	9.53	---	22.23	---	12.7	28.58	34.93	41.28	47.63	53.98
26	660.4	---	---	7.92	12.7	---	---	9.53	---	---	---	12.7
28	711.2	---	---	7.92	12.7	15.88	---	9.53	---	---	---	12.7
30	762	6.35	7.92	7.92	12.7	15.88	---	9.53	---	---	---	12.7
32	812.8	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
34	863.6	---	---	7.92	12.7	15.88	17.48	9.53	17.48	---	---	12.7
36	914.4	---	---	7.92	12.7	15.88	19.05	9.53	19.05	---	---	12.7
38	965.2	---	---	---	---	---	---	9.53	---	---	---	12.7
40	1016	---	---	---	---	---	---	9.53	---	---	---	12.7
42	1066.8	---	---	---	---	---	---	9.53	---	---	---	12.7
44	1117.6	---	---	---	---	---	---	9.53	---	---	---	12.7
46	1168.4	---	---	---	---	---	---	9.53	---	---	---	12.7
48	1219.2	---	---	---	---	---	---	9.53	---	---	---	12.7

Size, Dimensions & Tolerances of Seamless Pipe (mm)

NPS	*t/D	Tolerance, % from Nominal
1/8"~2.5"	All	+20.0	-12.5
3"~18"	≤5%	+22.5	-12.5
3"~18"	>5%	+15.0	-12.5
≥20“	>5%	+15.0	-12.5

*t: nominal wall thickness; D: ordered outside diameter.

Dimensions of ASME/ANSI B36.19M Welded and Seamless Wrought Steel Pipe

NPS　 (inches)	Outside Dia. (mm)	Nominal Wall Thickness (mm)
NPS　 (inches)	Outside Dia. (mm)	Sch5S⁽¹⁾	Sch10S⁽¹⁾	Sch40S	Sch80S
1/8	10.3	---	1.24	1.73	2.41
1/4	13.7	---	1.65	2.24	3.02
3/8	17.1	---	1.65	2.31	3.20
1/2	21.3	1.65	2.11	2.77	3.73
3/4	26.7	1.65	2.11	2.87	3.91
1	33.4	1.65	2.77	3.38	4.55
1¼	42.2	1.65	2.77	3.56	4.85
1½	48.3	1.65	2.77	3.68	5.08
2	60.3	1.65	2.77	3.91	5.54
2½	73	2.11	3.05	5.16	7.01
3	88.9	2.11	3.05	5.49	7.62
3½	101.6	2.11	3.05	5.74	8.08
4	114.3	2.11	3.05	6.02	8.56
5	141.3	2.77	3.4	6.55	9.53
6	168.3	2.77	3.4	7.11	10.97
8	219.1	2.77	3.76	8.18	12.70
10	273.1	3.40	4.19	9.27	12.70⁽²⁾
12	323.9	3.96	4.57	9.53⁽²⁾	12.70⁽²⁾
14	355.6	3.96	4.78⁽²⁾	…	…
16	406.4	4.19	4.78⁽²⁾	…	…
18	457.2	4.19	4.78⁽²⁾	…	…
20	508	4.78	5.54⁽²⁾	…	…
22	558.8	4.78	5.54⁽²⁾	…	…
24	660.4	5.54	6.35	…	…
30	762	6.35	7.92	…	…

Notes:

(1) Schedule 5S and 10S wall thicknesses do not permit threading in accordance with ANSI/ASME B1.20.1

(2) These dimensions do not conform to ANSI/ASME B36.1M
