Basic Information

Place of Origin:

CHINA

Brand Name:

KASUGAI

Certification:

ISO-9001; PED; AD 2000

Model Number:

AISI 304 ISO 49-1994(E) CL150 Stainless Steel Cast Thread Bushing

Minimum Order Quantity:

TO BE NEGOTIATED

Price:

PER BASE MATERIAL PRICE

Packaging Details:

SEAWORTHY PACKING

Delivery Time:

60 DAYS FOR ONE CONTAINER

Payment Terms:

L / C , T / T

Supply Ability:

100 TONS / MONTH

Product Specification

Product Name:

AISI 304 ISO 49-1994(E) CL150 Stainless Steel Cast Thread Bushing

Size Range:

1/8" To 4"

Thread Types:

ASME B1.20.1(NPT), BS 21 (NSPT), DIN2999/259

Pressure Class:

150

Standards:

ASTM A351 (CF8, CF8M), JIS(SCS13, SCS14), AISI (304/L,316/L), ASTM A182/A276 (304/L, 316/L),

Dimensions:

ISO 49-1994(E), MSS SP-114

Highlight:

Threaded Stainless Steel Bushings

Threaded SS Pipe Fittings

MSS SP-114 Stainless Steel Bushings

Our Product Introduction

for more products please visit us on flangespipefittings.com

Product Description

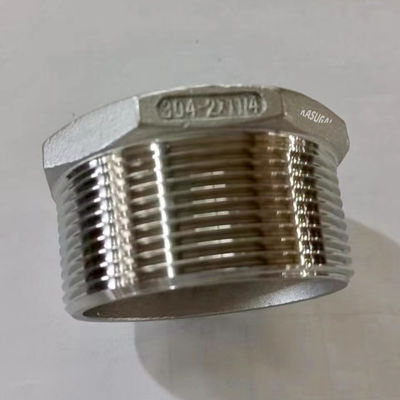

AISI 304 ISO 49-1994(E) CL150 Stainless Steel Cast Thread Bushing

Product Information

Product Name	AISI 304 ISO 49-1994(E) CL150 Stainless Steel Cast Thread Bushing
Thread Types	ASME B1.20.1(NPT), BS 21 (NSPT), DIN2999/259
Dimensions	ISO 49-1994(E), MSS SP-114, ANSI B16.3
Size Range	1/8” to 4”
Pressure Class	Class 150
Materials	ASTM A351 (CF8, CF8M), JIS(SCS13, SCS14), AISI (304/L,316/L), ASTM A182/A276 (304/L, 316/L)

ISO 49-1994 Dimensions of Bushing (mm)

Widths across flats, s, are left to the discretion of the manufacturer.

Fitting Sizes (inches)	Patterns	Dimensions (mm)		Laying Lengths (mm)
Fitting Sizes (inches)	Patterns	a	b	z
¼ ×⅛	I	20	—	13
⅜ ×⅛	II	20	—	13
⅜ ×¼	I	20	—	10
½ ×⅛	II	24	—	17
½ ×¼	II	24	—	14
½ ×⅜	I	24	—	14
¾×¼	II	26	—	16
¾ ×⅜	II	26	—	16
¾ ×½	I	26	—	13
1 ×¼	II	29	—	19
1 ×⅜	II	29	—	19
1 ×½	II	29	—	16
1 ×¾	I	29	—	14
1¼ ×⅜	II	31	—	21
1¼ ×½	II	31	—	18
1¼ ×¾	II	31	—	16
1¼ ×1	I	31	—	14
(1½ ×⅜)	II	31	—	21
1½ ×½	II	31	—	18
1½ ×¾	II	31	—	16
1½ ×1	II	31	—	14
1½ ×1¼	I	31	—	12
2 ×½	III	35	48	35
2 ×¾	III	35	48	33
2 ×1	II	35	—	18
2 ×1¼	II	35	—	16
2 ×1½	II	35	—	16
2½ ×1	III	40	54	37
2½ ×1¼	III	40	54	35
2½ ×1½	II	40	—	21
2½ ×2	II	40	—	16
3 ×1	III	44	59	42
3 ×1¼	III	44	59	40
3 ×1½	III	44	59	40
3 ×2	II	44	—	20
3 ×2½	II	44	—	17
4 ×2	III	51	69	45
4 ×2½	III	51	69	42
4 ×3	II	51	—	21
